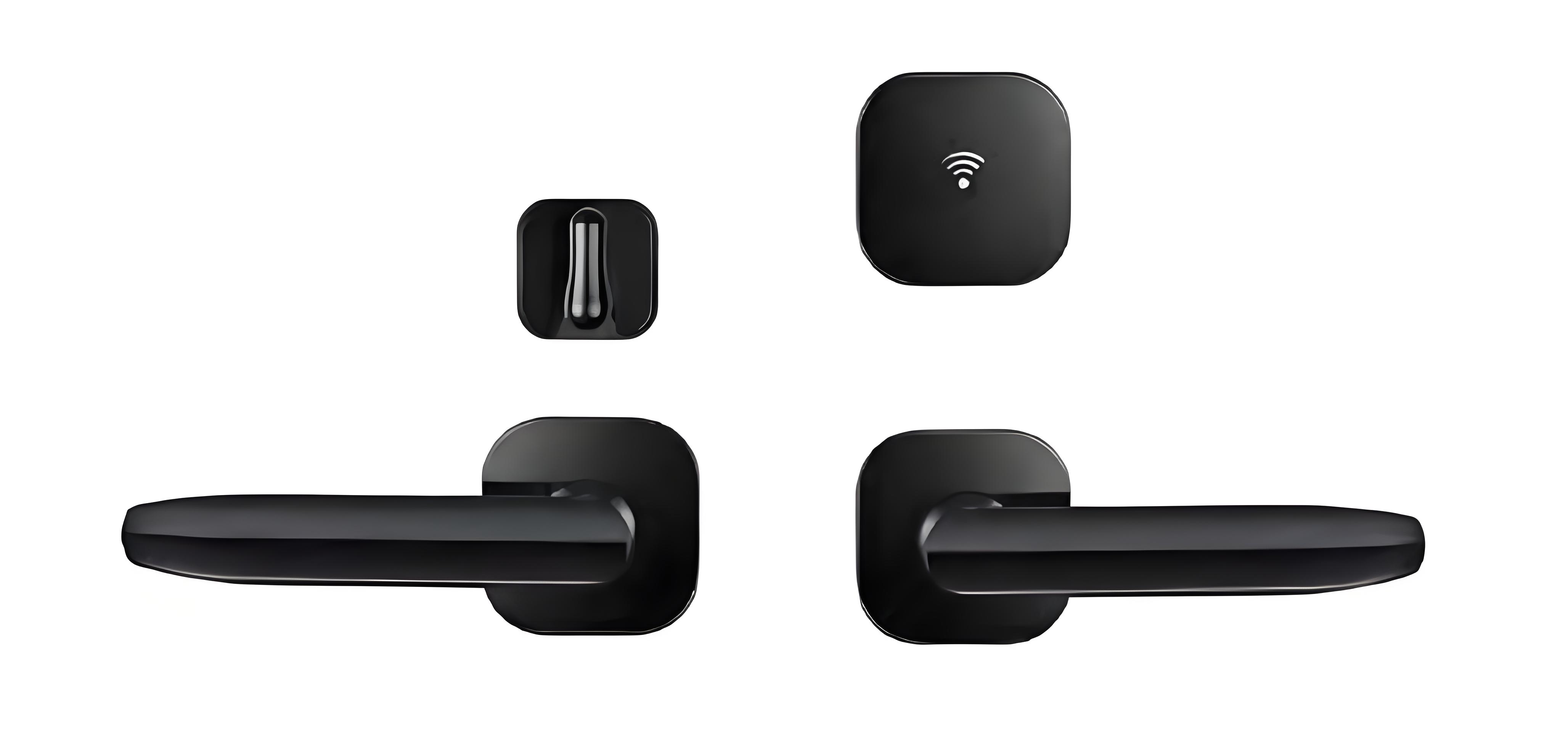

S170 series split hotel smart lock
——Concealed design, efficient identification, and long-lasting battery life
Core functions
1. Concealed emergency lock core: The emergency mechanical lock core is hidden inside the handle, balancing safety and aesthetics;

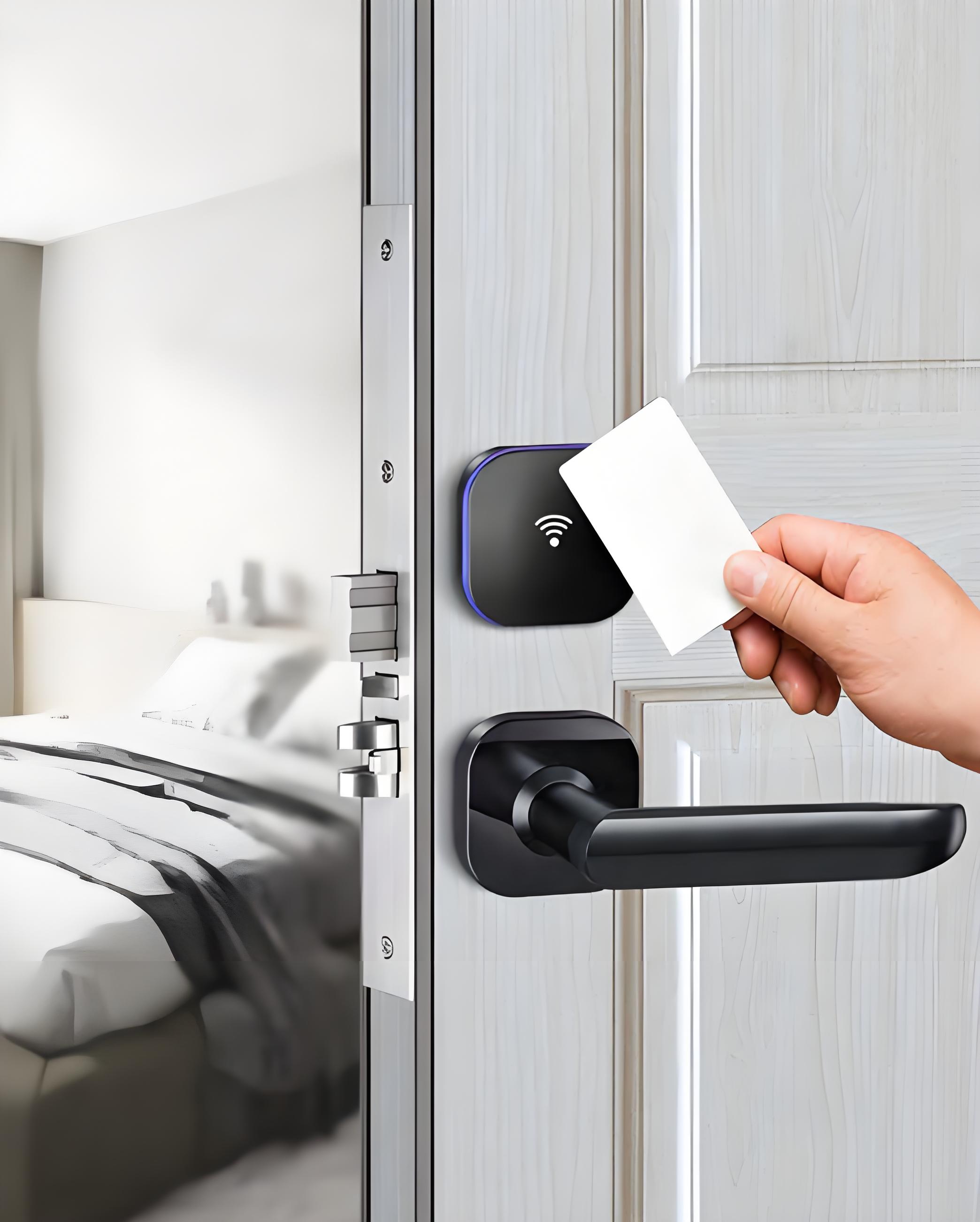

2. Near field RFID recognition: supports quick unlocking of Mifare cards, with a card swiping response time of less than 0.2 seconds;
3. Intelligent status feedback: LED indicator lights are integrated around the card reader to display real-time battery level and unlocking status;
4. Bluetooth mobile control: Remote authorization and management can be achieved through a mobile app to meet the digital operation needs of hotels;
5. Hidden battery compartment: The battery and PCB board are built into the lock body, with a dust-proof and anti damage structural design.
Industrial grade structure and parameters
1. Zinc alloy handle+CNC aluminum card reader: corrosion-resistant and wear-resistant, passed 100000 opening and closing tests;
2. Ultra low power consumption design: Static current of 25 μ A, 4 AA batteries with a range of 12-18 months;
3. Wide environmental adaptability: working temperature -20 ℃~45 ℃, humidity 20%~95%, suitable for wooden doors;
4. Security redundancy scheme: Dual unlocking mode (RFID card+mechanical key), worry free operation in power outage scenarios.

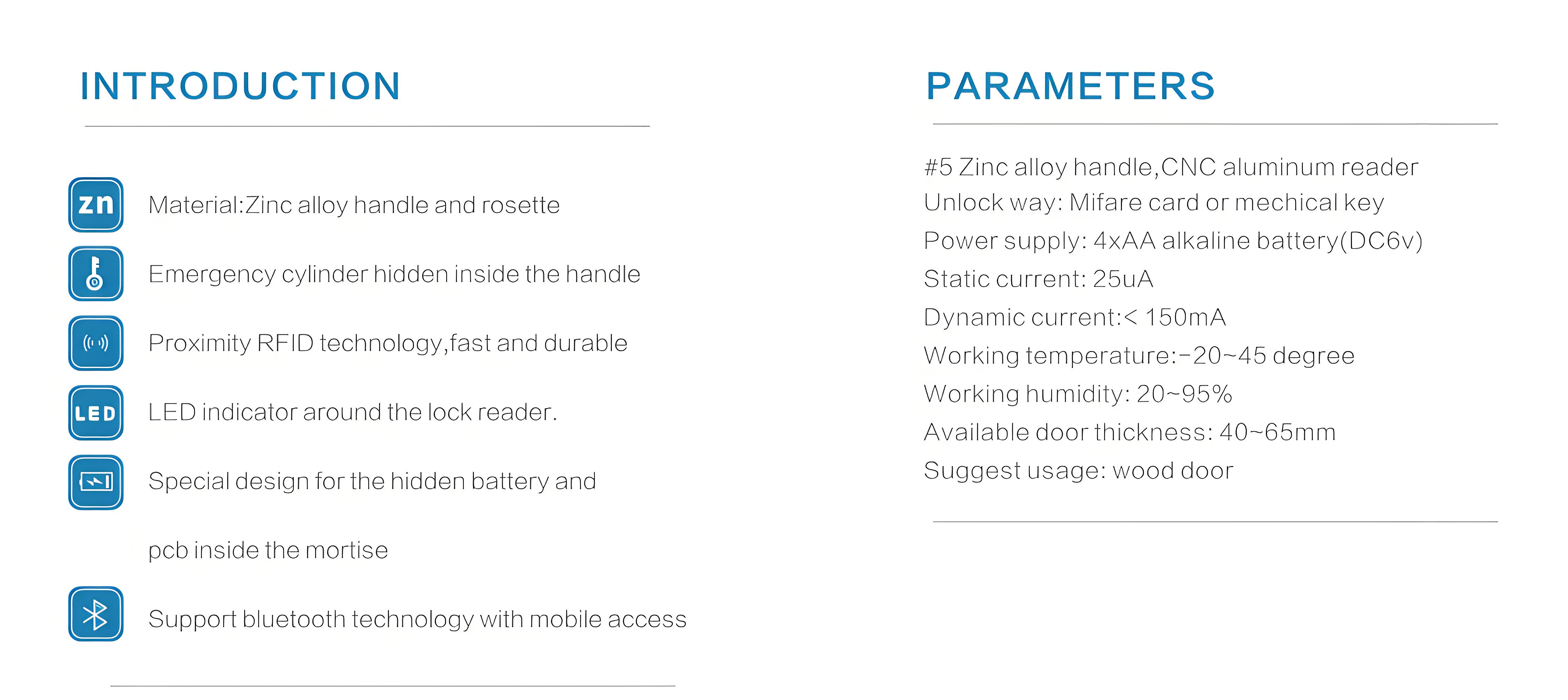

Technical Parameter

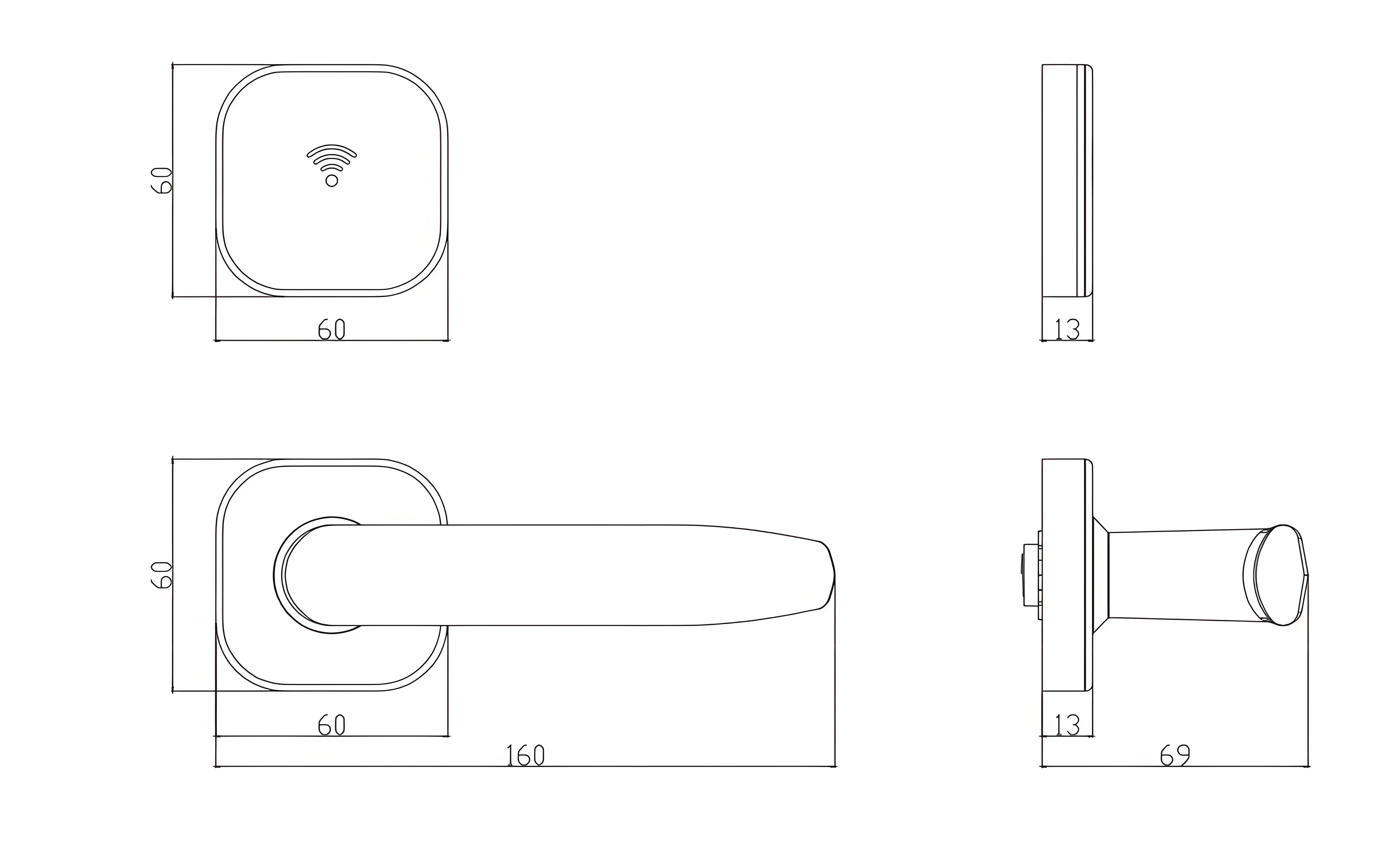

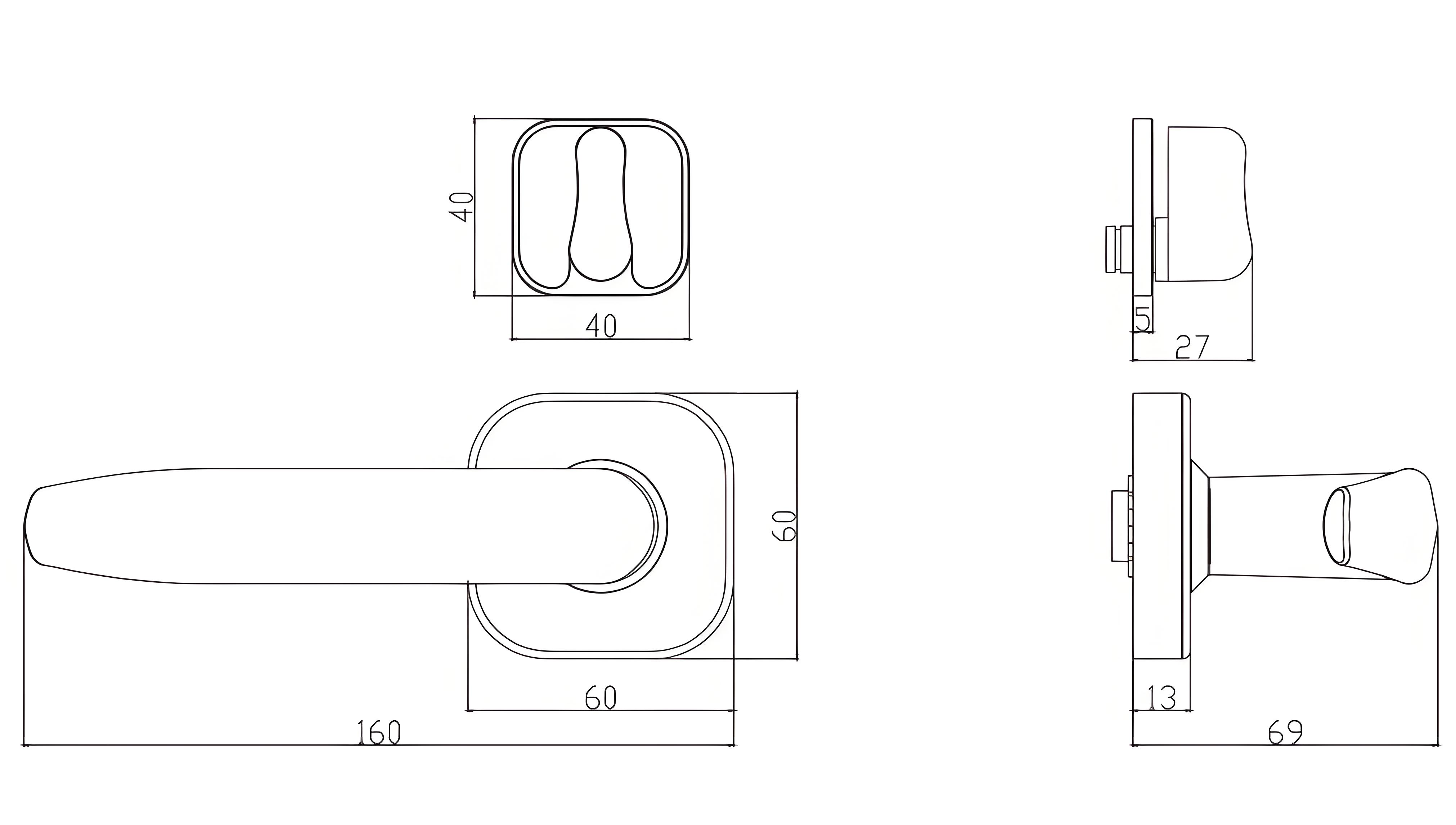

Applicable door thickness: 40-65mm
Dynamic current: ＜ 150mA
Power supply standard: 4 × AA alkaline batteries (DC6V)
Protection level: IP54 (dustproof and splash proof)
S170 series - centered around hotel scenes, utilizing concealed design and long-lasting endurance to reconstruct spatial management efficiency.
